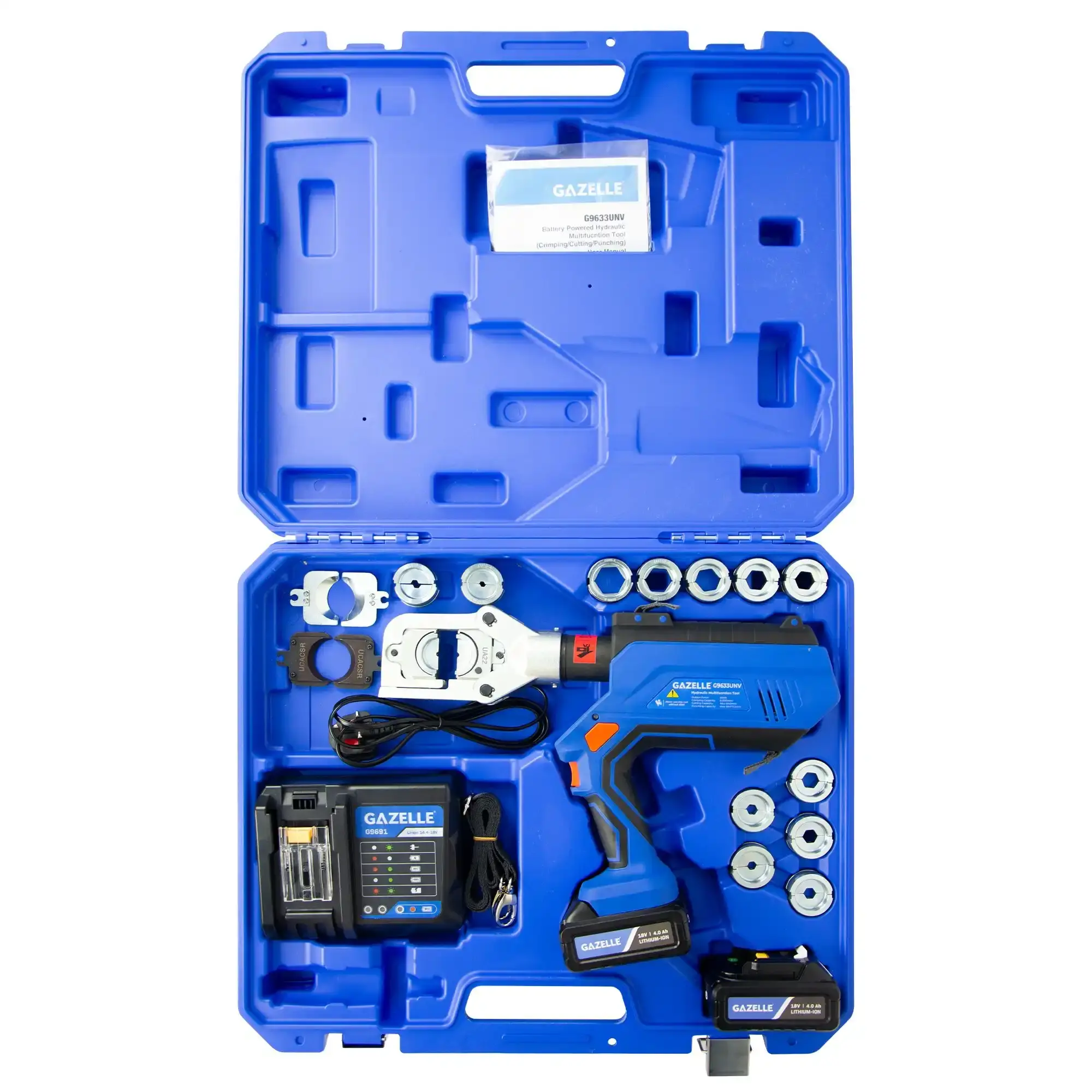

G9633UNV 3-IN-1 18V CORDLESS HYDRAULIC CRIMPING TOOL, MAX CRIMPING CAPACITY 6-30
Note: This message box will not appear on your live site
The Size Guide Button above will appear if a Size Guide is activated for a product with the Pop-Up display option selected.
Click here and select Manage Size Guides to create and customize size guides for your products in just a few steps!
To edit the design of your Size Guide Pop-Up, select Size Chart under Pages in the top-left page selector.
- 3-in-1 Functionality: Combines crimping, cutting, and punching capabilities in a single tool for versatile applications.
- High Crimping Force: Delivers 6 tons of crimping force with a maximum capacity of 300mm², suitable for a wide range of industrial tasks.
- Efficient Cutting: Cuts materials up to 40mm in diameter, including Cu/Al/ACSR cables, with precision.
- Punching Capability: Handles plain steel (3.5mm thick, Φ64mm) and stainless steel (2.5mm thick, Φ64mm) for clean and accurate results.
- Advanced Design: Features a 360-degree rotating crimping head with a flip-top design for easy access in tight spaces.
- Smart Technology: Built-in computer chip with an OLED display provides real-time operational data for precise control.
- Enhanced Safety: Automatic pressure release ensures safe and efficient operation.
- Integrated LED Work Light: Illuminates work areas for improved visibility in low-light conditions.
- Durable Construction: Made from impact-resistant PP plastic for long-lasting performance in demanding environments.
- Portable and Lightweight: Weighs only 4.5kg with compact dimensions (43x8x28cm), making it easy to transport and store.
- Comprehensive Accessories: Includes crimping dies (6-300mm²), cutting blades, and a die adapter for various applications.
- Reliable Power: Equipped with two 18V, 4.0Ah lithium batteries and a fast charger for uninterrupted use.
- Protective Packaging: Supplied in a robust plastic case (59x51x14cm) for secure storage and transport.
- Crimping Force: 6t
- Rated Pressure: 700bar
- Crimping Capacity: Max 300mm2
- Punching Capacity: Plain Steel - 3.5mm thick, Φ64mm, Stainless Steel - 2.5mm thick, Φ64mm
- Cutting Capacity: Max 40mm Cu/AI/ACSR
- Die Adapter: Cu50-300mm²
- Cutting Blade: UCACSR/UC40
- Dimension: 43x8x28cm
- Net Weight: 4.5kg
- Packing: Plastic Case
- Packing Size: 59x51x14cm
